Hakki Pilke

Falcon 37 firewood processor

NEW – Hakki Pilke Falcon 37 firewood processor

The New Falcon 37, has replaced the Falcon 35, offering more capacity and a new oil feed system for the chainsaw guide bar.

Features include:

  • Maximum timber capacity 37cms.
  • The splitting function is by far the best in the market in its category as it is very fast.
  • Thanks to the hydraulic functions (saw and conveyors) the machine has no V-belts.

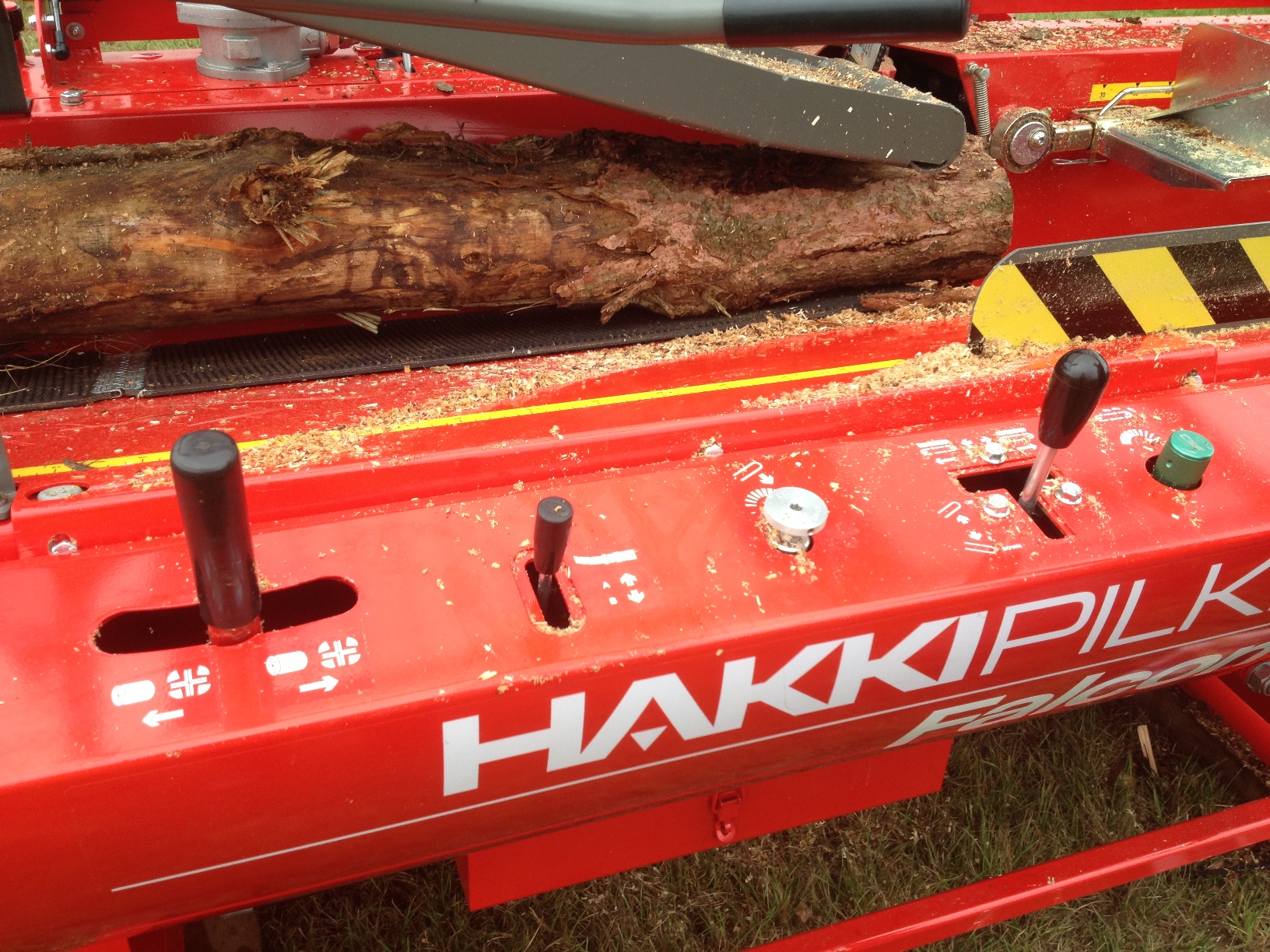

  • A one-hand control lever makes the machine very easy to use and there is an active safety cover for increased safety and easier use of the machine.
  • The speed of the machine is automatically adjusted according to the size of the trunks.
  • An adjustable hydraulic lubrication pump guarantees a long life for the saw blade and chain.
  • NEW – Oil flow to chainsaw¬† is now¬† gravity fed and tank is in new location.
  • The structure of the machines lower parts enables easy access to clean underneath.
  • A wide array of tailor-made options are available for the Falcon to enhance it’s functions and value.
  • Outward conveyor can be slewed manually from side to side.

Standard equipment

  • Hydraulic infeed conveyor
  • Automatically optimised saw lowering speed
  • Automatic speed valve
  • Pivoting and cleaning outfeed conveyor
  • Outfeed conveyor speed control valve
  • Active safety cover
  • Tool box

Specification

  • Max log diameter 370mm
  • Max wood length 500mm
  • Max Splitting force 8ton
  • Saw chain 0,325/1,5/71
  • Blade length 16″
  • Dimensions in transport position:
    Height 2530mm
    Width 1250mm
    Length 2550mm
    Weight 860kg

Optional Extra’s

  • 6 way splitter
  • Hakki feed table
  • Cleaning discharge conveyor
  • Conveyor speed control
  • Additional auxiliary kit for table and table infeed rollers
  • Size guide plate for infeeding


Images

Videos

Price list

Please contact us for our best price.

Enquire
