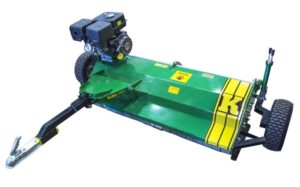

ATV 1.5m flail mower with flap 35-VKMATV150H

ATV Flail 1.5m mower with flap – only from Kellfri! Patent-pending design.

  • Mower with hammer flails for ATV
  • Working width 150 cm
  • Fit wheels for stability and compliance at the sides or for maximum accessibility at the back
  • Sturdy rubber balloon wheels (16-6.50×8)
  • The wheels are individually height-adjustable with a spring-locked crank to prevent the crank moving backwards as a result of vibration

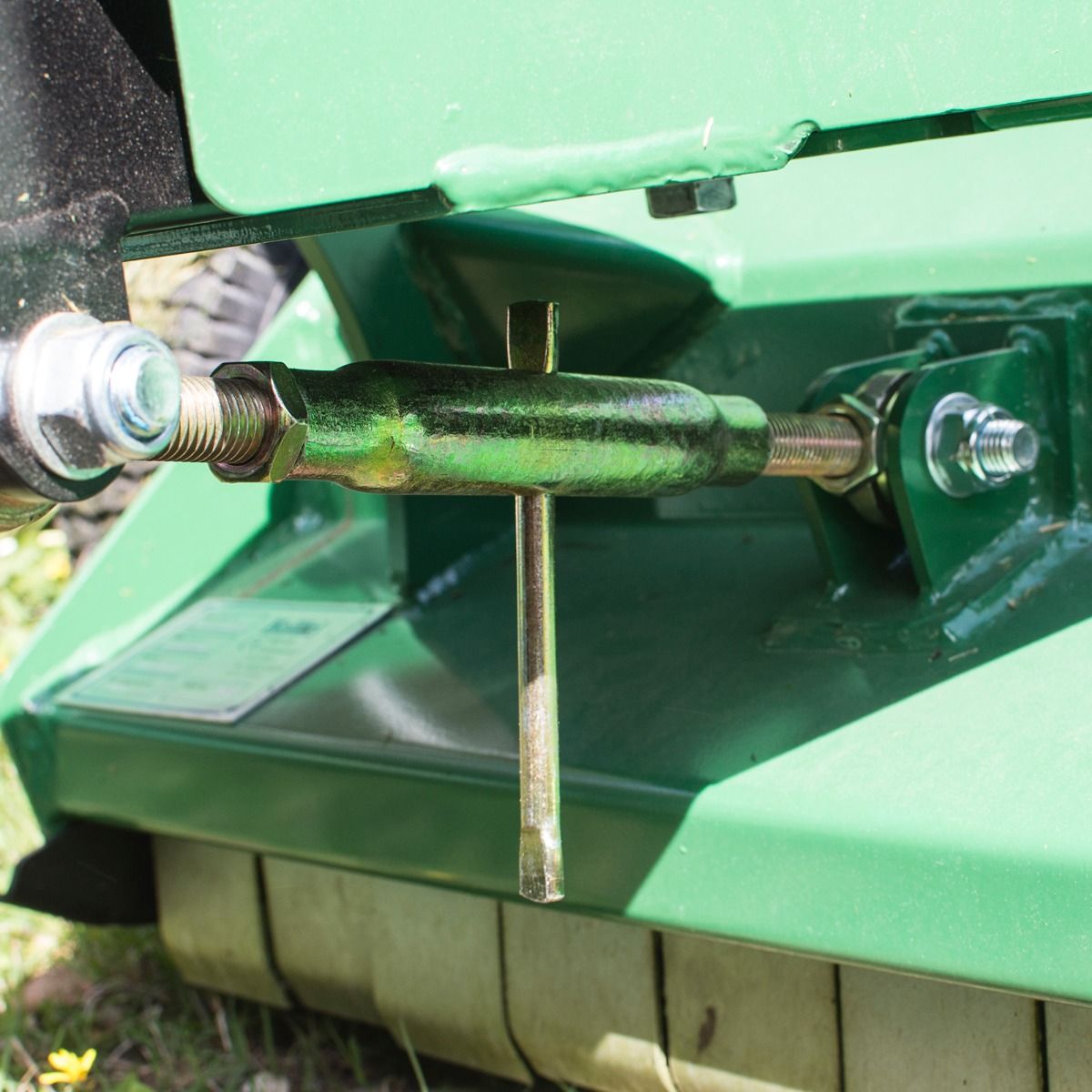

  • Adjust the angle of penetration with the turnbuckle under the tow bar
  • Skids at the sides for stable, smooth operation
  • Mudguard at the front to reduce the risk of stone chipping – HIGH LEVEL OF SAFETY!
  • 15 hp engine with oil level monitor
  • NEW Option for moving tow bar from side to central position and NEW mechanism for cutting height adjustment.

Why should you choose this pasture topper?

  • Fitted with a flap at the back, which releases the grass to avoid excessive accumulation under the hood. In this way you save on fuel and reduce wear on the belts. You can also operate at a higher speed than an ATV flail mower without a flap. The grass is also spread more evenly.
  • Deals with tougher vegetation where there may be ground obstacles such as tussocks and roots
  • Many of our customers use it for topping pastures, parks and roadsides
  • Stable construction

A flail mower built for a long service life, so that you can spend your money on something else

  • Grease nipples on support and rotor roller bearings
  • Sealed cover over the belts
  • The whole construction is well-protected but easy to access for cleaning, servicing and repair
  • Wide support roller at the rear
  • The tow bar has five fixed lateral adjustments

Tips for use

For best results, and a longer service life for belts, we recommend mowing at a speed of 10 km/h if the grass is of normal height. For higher grass, raise the mower to its maximum and mow twice.

Specification

  • Working width: 1,500 mm
  • Power requirement: 15 hp (choice of engine)
  • Wheels: 16 x 6.5-8O
  • operating speed: 6 – 12 km
  • L x W x H: 1,720 x 2,060 x 900 mm
  • Flails: 32

Product Code:

  • With standard 18hp petrol engine 35-VKMATV150H.2
  • With 13.5hp Briggs and Stratton petrol engine 35-VKMATV150H.B

Optional Extra’s

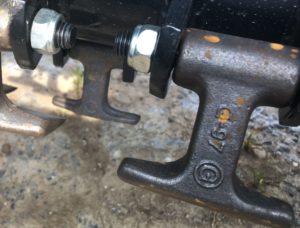

Heavy duty flails

Please Note:

toolsThis item is only supplied built and will be ready for use.

Brochure


Images

Videos

Price list

  • 150cm ATV flail mower with 13.5hp B&S engine- 35-VKMATV150H.B: £1,850 plus VAT and carriage. Built ready for use.
  • 150cm ATV flail mower with 18hp engine- 35-VKMATV150H.2: £1,760 plus VAT and carriage. Built ready for use.
