ATV Tipping Trailer with 1420Kg capacity 23-TV10H

ATV trailer with electrical hydraulic tipper and powerful three-stage tipper ram

  • Electrical hydraulic tipper 12 V
  • Sturdy floor in 2 mm tread plate
  • Powerful three-stage tipper ram
  • Robust tyres

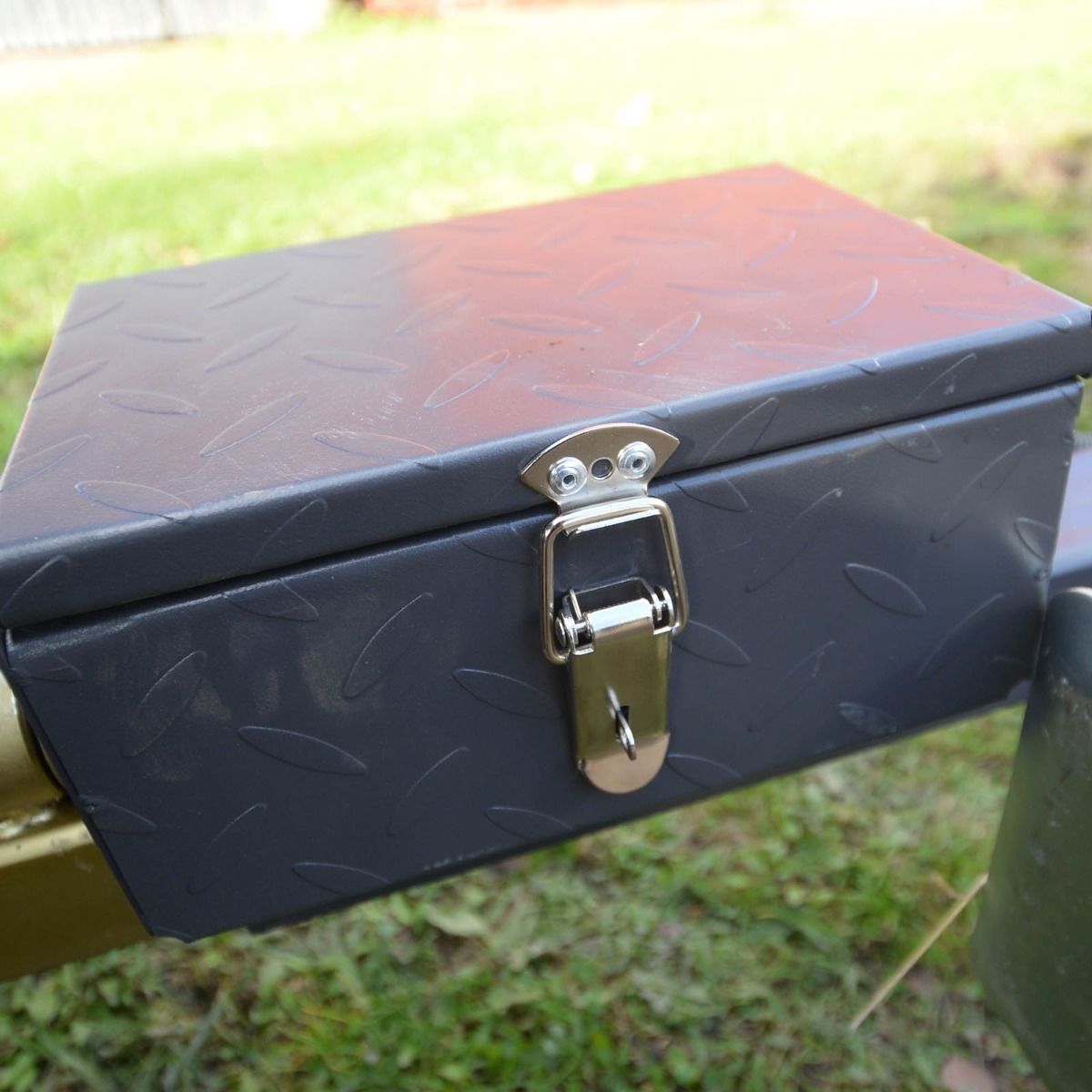

  • Practical storage box for actuator
  • Extension side available

A well-built ATV tipping trailer with sturdy floor plate, powder coated for long service life. Electrics and hydraulics are safely protected under the floor, long three-part tipper ram for large tipping angle makes the floor easy to clean.

Electricity is supplied from the ATV’s 12 V socket and tipping is controlled from an actuator with cable which is stored in a box on the tow bar when not in use.

1,420 kg load capacity, headboard and tailgate can be opened, jack with crank and 50 mm rotatable tow bar ball hitch.

Product Code:

23-TV10H

Specification

  • Axle type Bogie
  • Floor dimensions 2,000 x 1,070 x 580 mm
  • Colour Powder coated
  • Wheels 22 x 11-10
  • L x W x H 3,450 x 1,250 x 1,100 mm
  • Max. load 1,420 kg
  • Tip Electrical hydraulic, 12 V
  • Weight 270 kg
  • Shipping: Requires 4 half pallets spaces in crate / 6 half pallet spaces if built

toolsThis item is supplied in a kit and will require building up if delivered direct to you.
