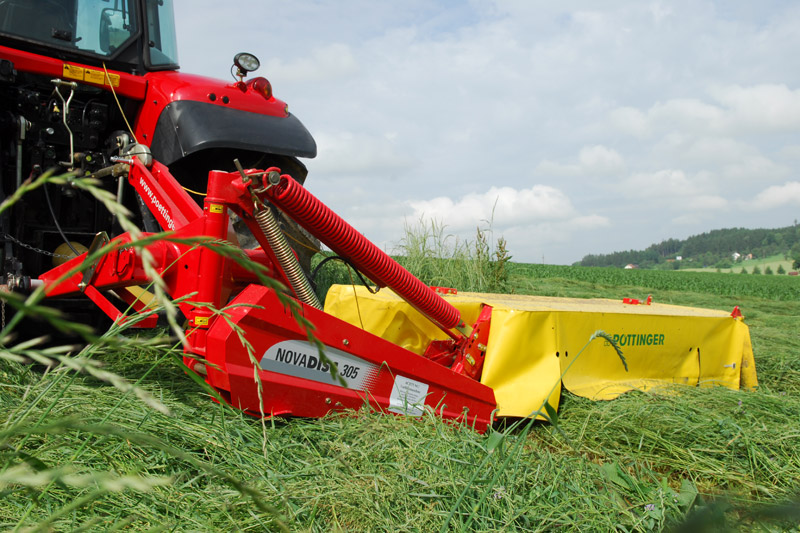

NOVADISC 265 / 305

The NOVADISC range of mowers are available from 2.25m  and 4.00m. We stock the 265 (2.65m / 8’6″) and the 305 (3.05m /10′). These range of mowers have the Pöttinger’s proven cutter bar across the whole range of mowers.

The features of the Pöttinger cutter bar are:

• Top service cutter bar
• Fully welded construction
• Large oval discs with excellent blade overlap
• Quick change blade system
• Cool running cutter bar ensuring less ware
• Every cutter bar is tested for noise and vibration before leaving factory
• Heel mounted mower with No inner shoe. This avoids clogging when mowing through mown crop.
• Semi rigid blade system – Blade are not free swinging hence the blades are fully extended at all times. This avoids striping and leaving uncut strips. This is especially important in heavy crops.

Other features include:

• Lift and lowering of machine on tractor spool valve. The link arms remain level, which will cause less damage to PTO shaft.
• Machine can run in transport position.
• Ground following (must have float on tractor spool valve)
• Toolbox on headstock.

Specifications

	NOVADISC 265	NOVADISC 305
Mounting	Rear 3-point linkage	Rear 3-point linkage
Mounting category	Cat, II / 2	Cat, II / 2
Breakaway feature	Mechanical breakaway device	Mechanical breakaway device
Weight	585 kg	650 kg
Working width	2,62 m	3,04 m
Transport height	2,9 m	3,4 m
PTO Input Speed	540 rpm	540 rpm
Mower discs	6 pcs.	7 pcs.
Mower blades	12 pcs.	14 pcs.
Power requirement	50 hp	60 hp
Coverage	2,6 ha/h	3 ha/h
Outer track	1,800 – 2,200	1,800 – 2,200
Outer wear skids	5 pcs.	6 pcs.
Inner wear skids	1 pcs.	1 pcs.
High-cut skids outside	5 pcs.	6 pcs.
High-cut skids inside	1 pcs.	1 pcs.
Swath width without swath discs	1,7 m	2,3 m
Swath width with 2 swath discs	1,5 m	1,7 m
Swath width with 4 swath discs	1,1 m	1,3 m
Swath forming / Conditioner	Swath discs	Swath discs
Swath discs (Standard)	without swath discs	without swath discs
